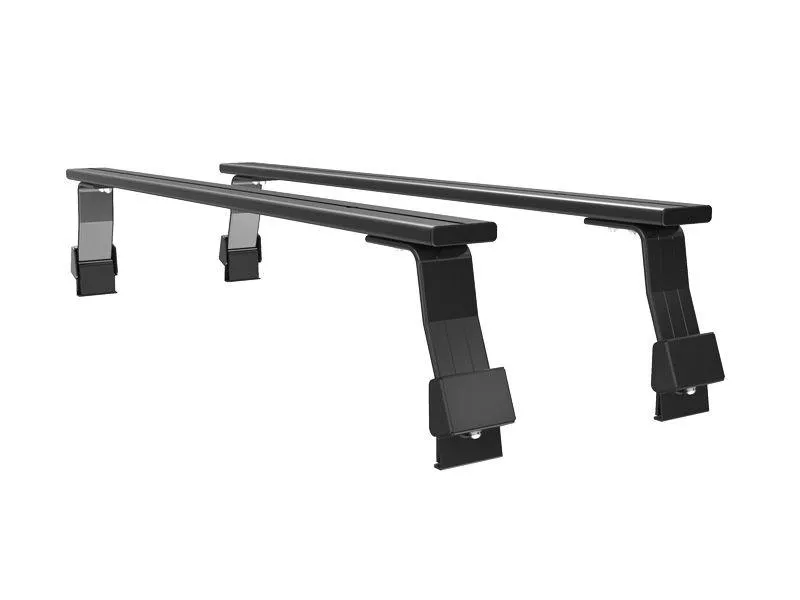

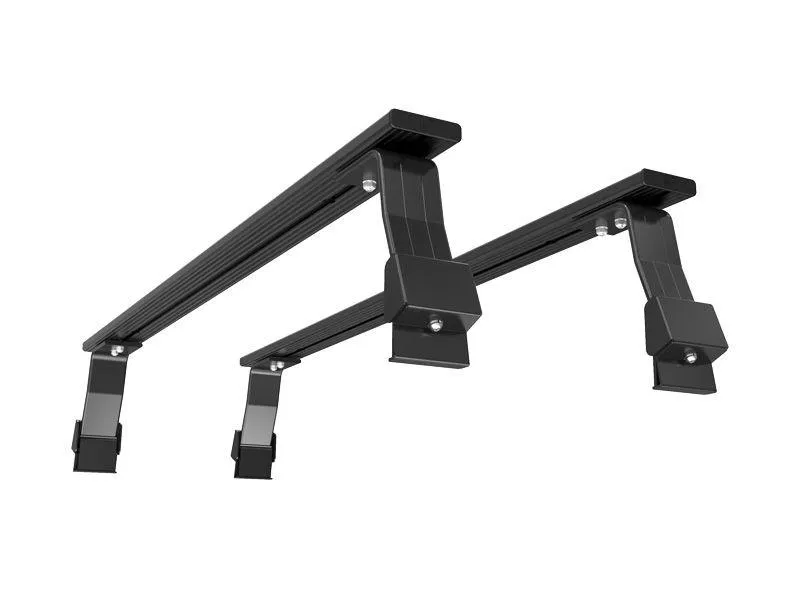

Load Bar Kit/Gutter Mount L For Toyota Land Cruiser 78 3-Door Wagon - by Front Runner Outfitters

For the owners of a Toyota Land Cruiser 78 3-Door Wagon and want a reliable load bar kit or gutter mount, the Front Runner Load Bar Kit is an excellent choice.

If you don't really need a full roof rack kit, these load bars are more than enough.

This low profile, smaller footprint solution includes 4 190mm Gutter Mount legs, 2 1425mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

These will still allow you to easily carry off-road related items, such as kayaks, bicycles, cargo, accessories and even

The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather resistant black powder-coated aluminum.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

FREE Shipping!

The Load Bars Consist Of:

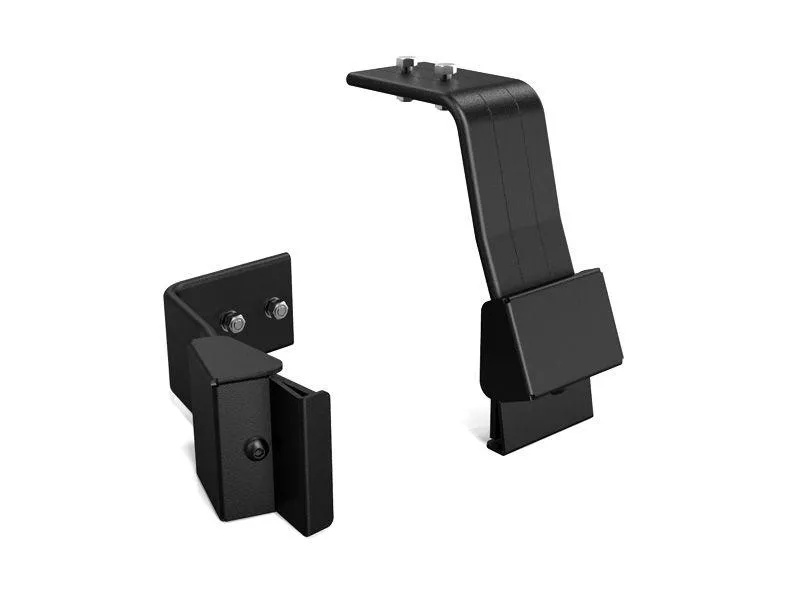

• 2 x LASS105 - No 5 Leg 190mm (Pair) - by Front Runner
• 1 x RRAC044 - SLAT TO LOAD BAR CONVERSION END CAP KIT - by Front Runner
• 2 x RRSS1425 - 1425mm Slat - by Front Runner
• 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Materials Used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel

Dimensions Of Load Bars:

• Width 120mm (5")
• Length 1545mm (61")
• Height 175mm (7")
• Approximate Installed Weight 7kg (16lbs)

How To Install Them:

Download the Leg Assembly Instructions

1. The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
2. To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
3. If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
4. If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
